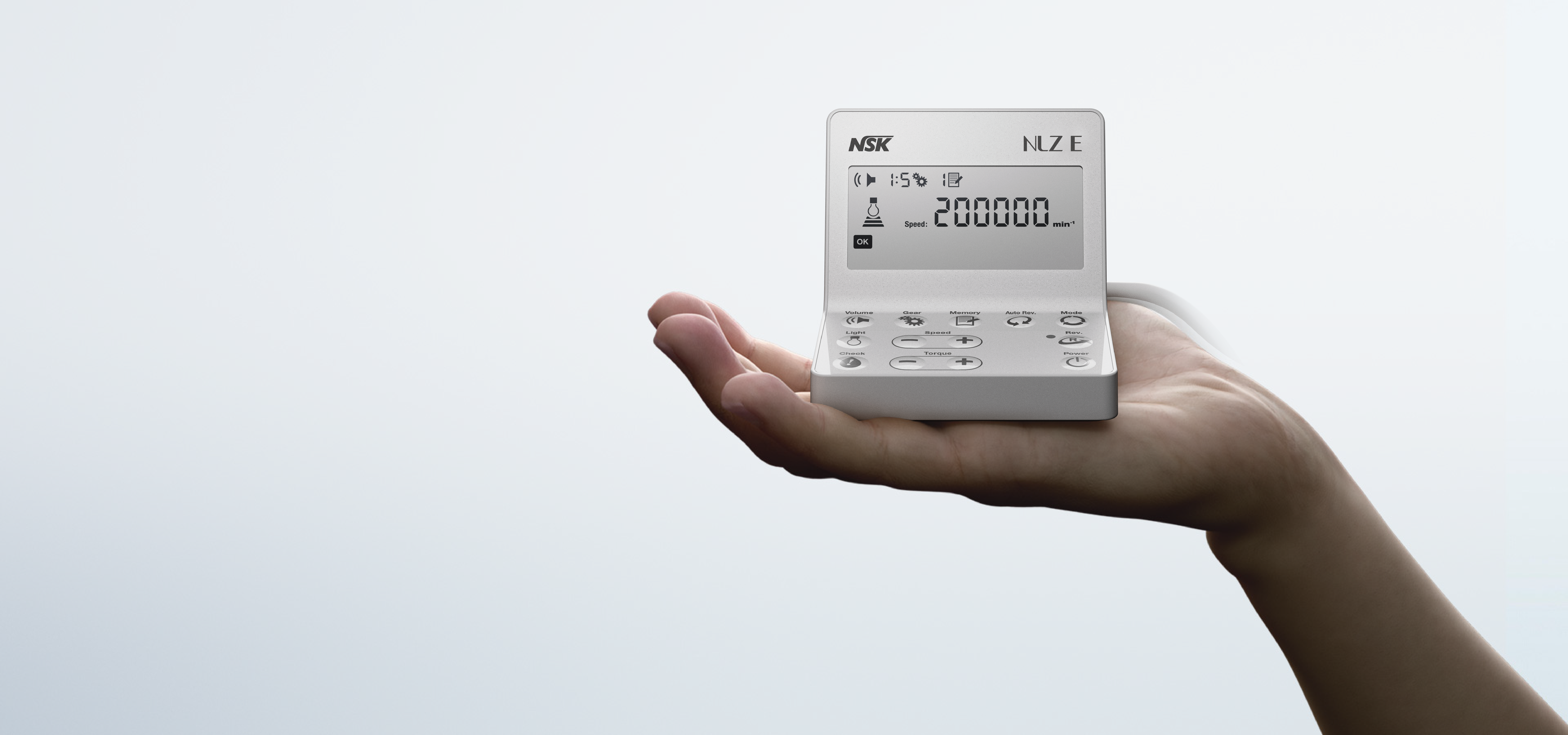

THE NEW STYLE ELECTRIC MICROMOTOR The compact motor with big changes.

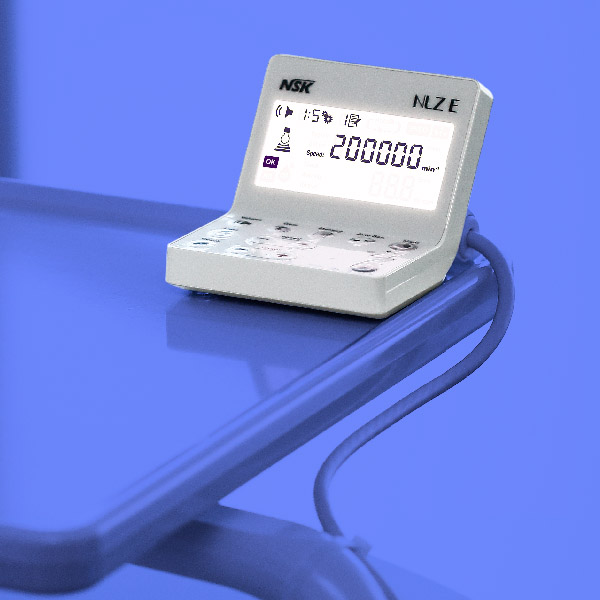

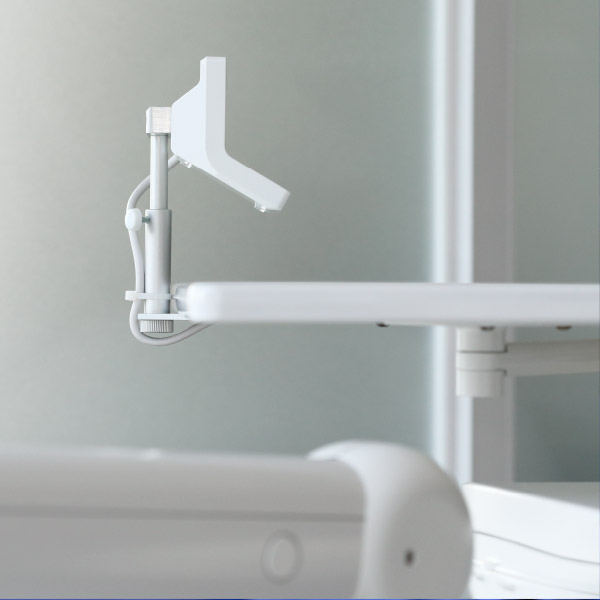

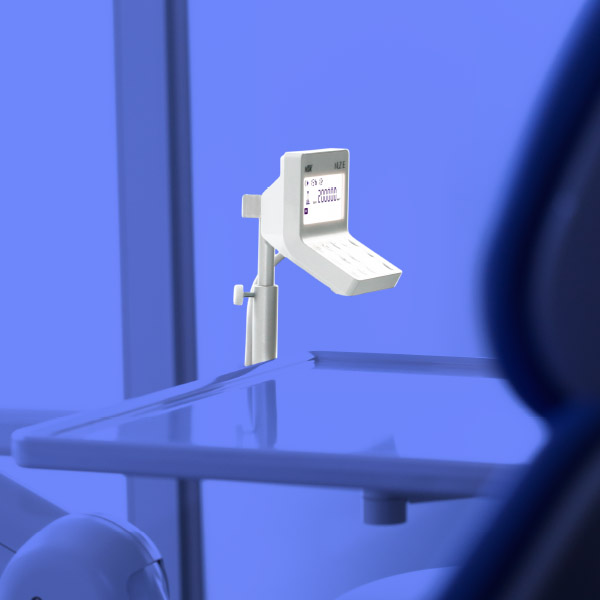

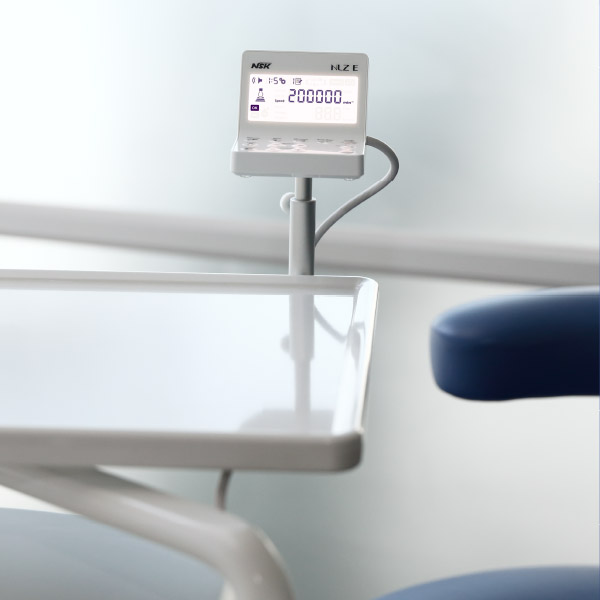

VERSATILE
INSTALLATION
OPTIONS
SUPERIOR VISIBILTY
& OPERABILITY
SUPERIOR
MOTOR
PERFORMANCE
120% Torque High

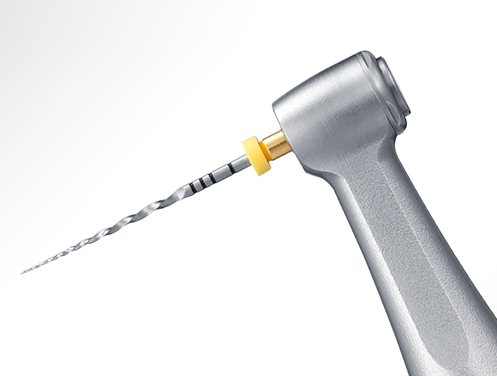

ENDODONTIC
RECIPROCATING
FUNCTION
CONTRA-CHECK FUNCTION
CONTRA-SAFE FUNCTION
CONTRA-RESTRICTION FUNCTION

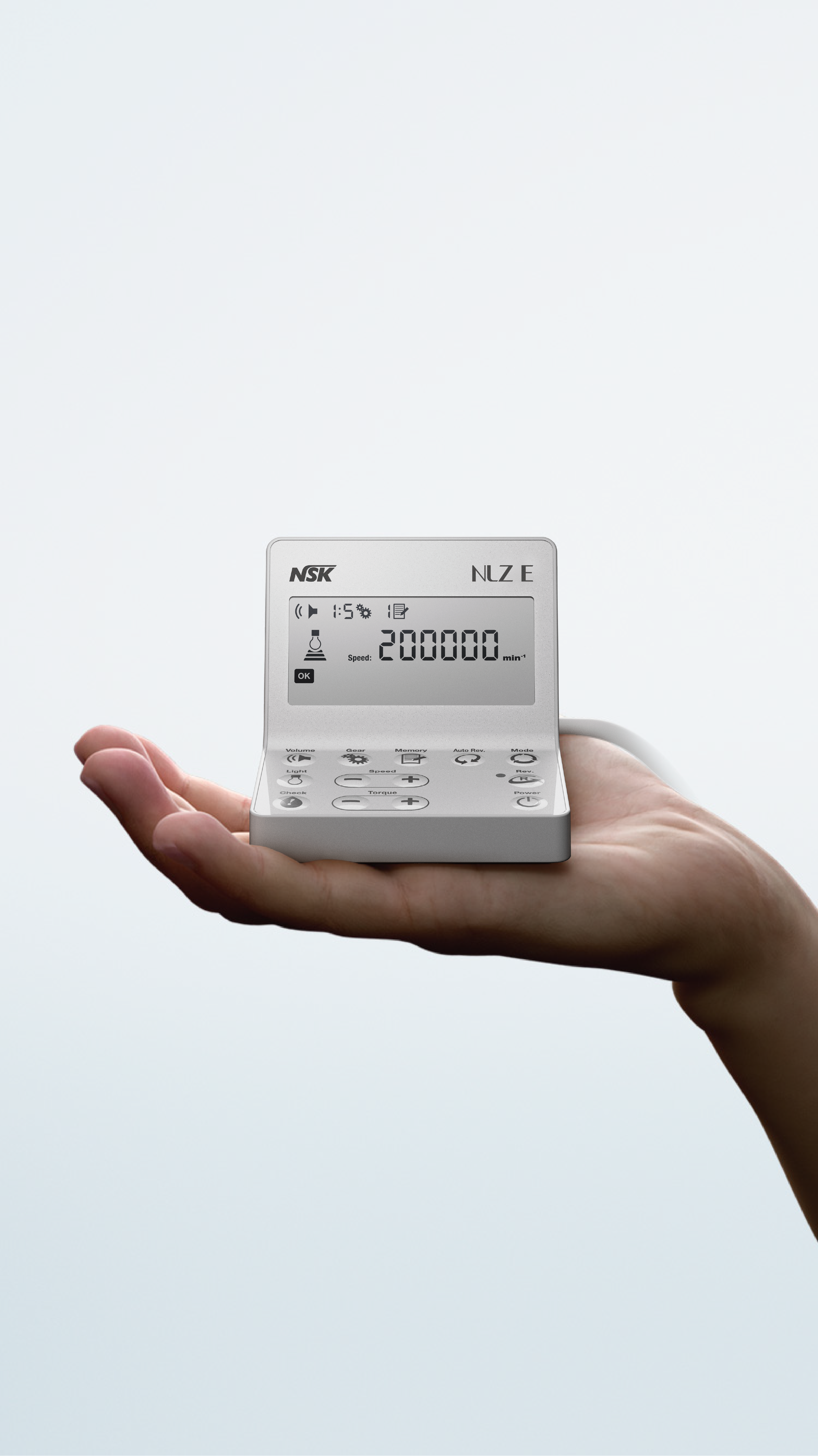

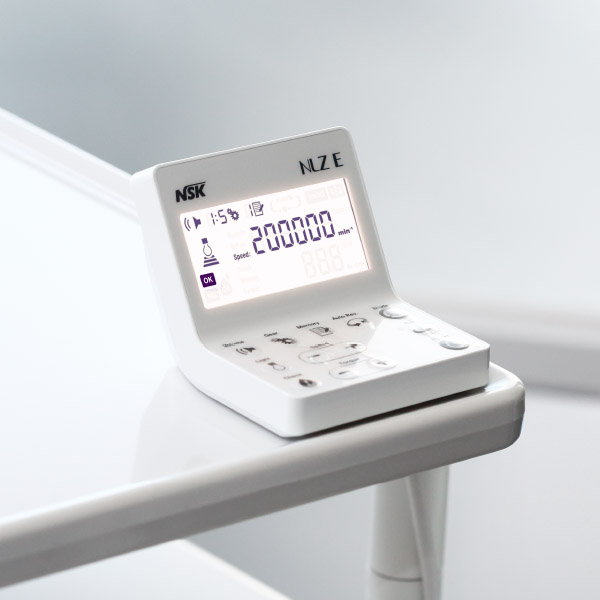

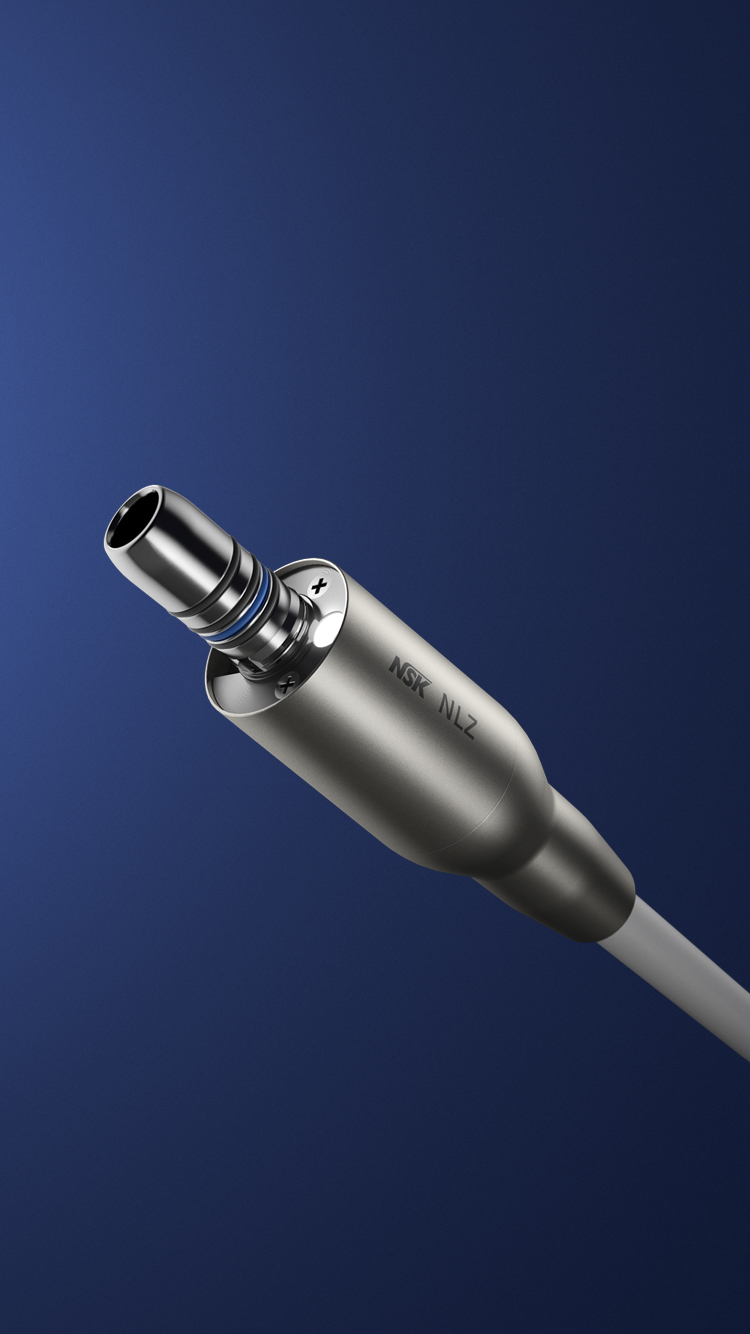

NSK’s all new “NLZ E” can help any user of air driven high speed turbine handpieces convert to electric and enjoy the full benefits of this smart system.

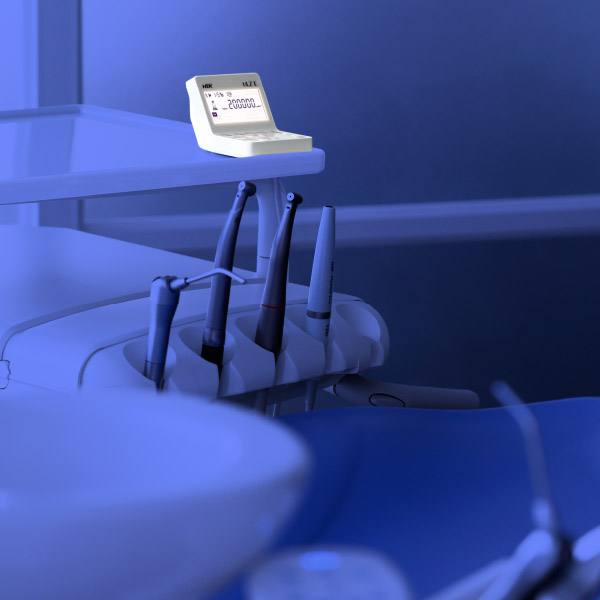

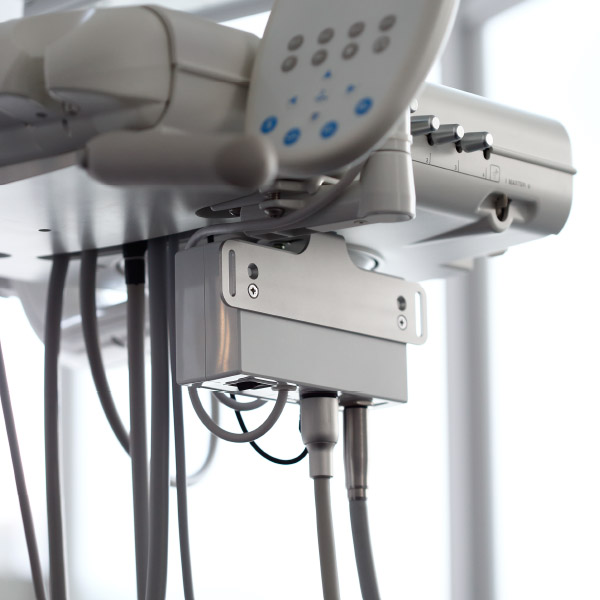

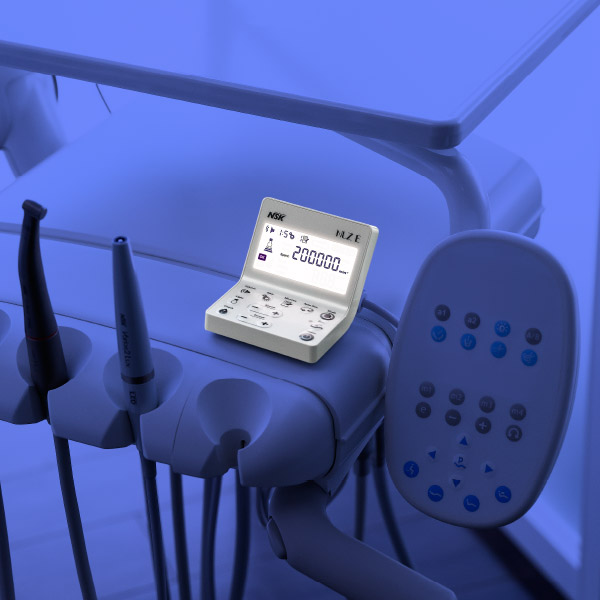

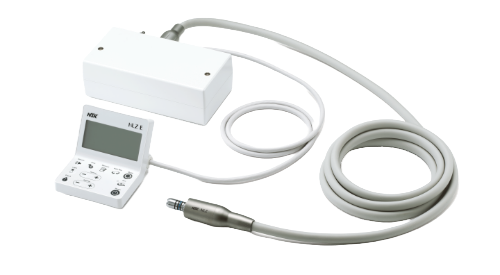

Bringing big changes in a compact format. This portable all-new micromotor system used with contra-angles for general and endodontic (rotary & reciprocating) applications, comes with additional safety features and installation versatility (portable or semi built-in).

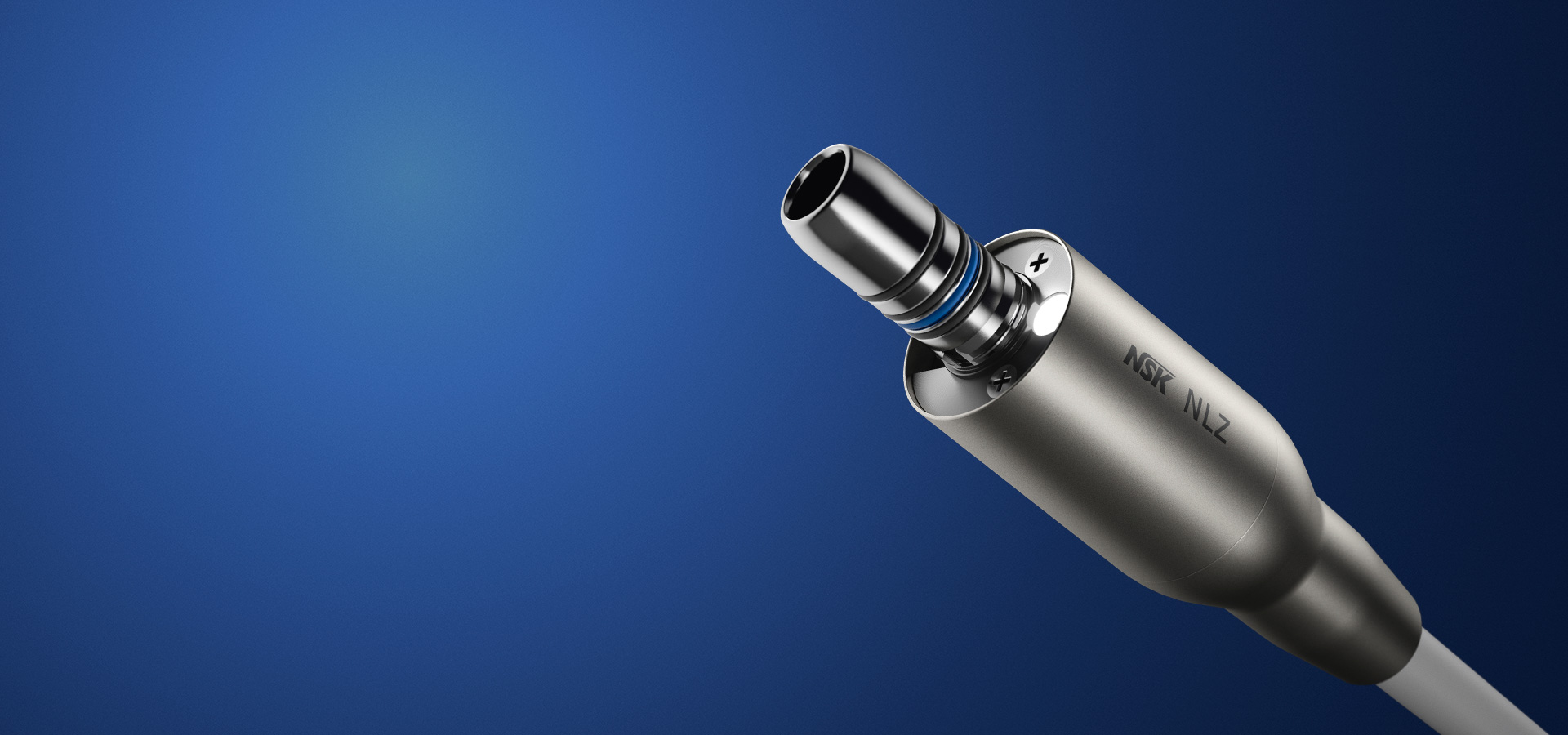

Electric micromotors
- high speed rotation and torque
- flexible speed variation
- no maintenance
- for all clinical applications
- E-type fitting connects with all contra-angle handpieces (NSK, KaVo®, Sirona®, W&H®, Bien-Air®)
- Optic and non-optic
- Internal spray

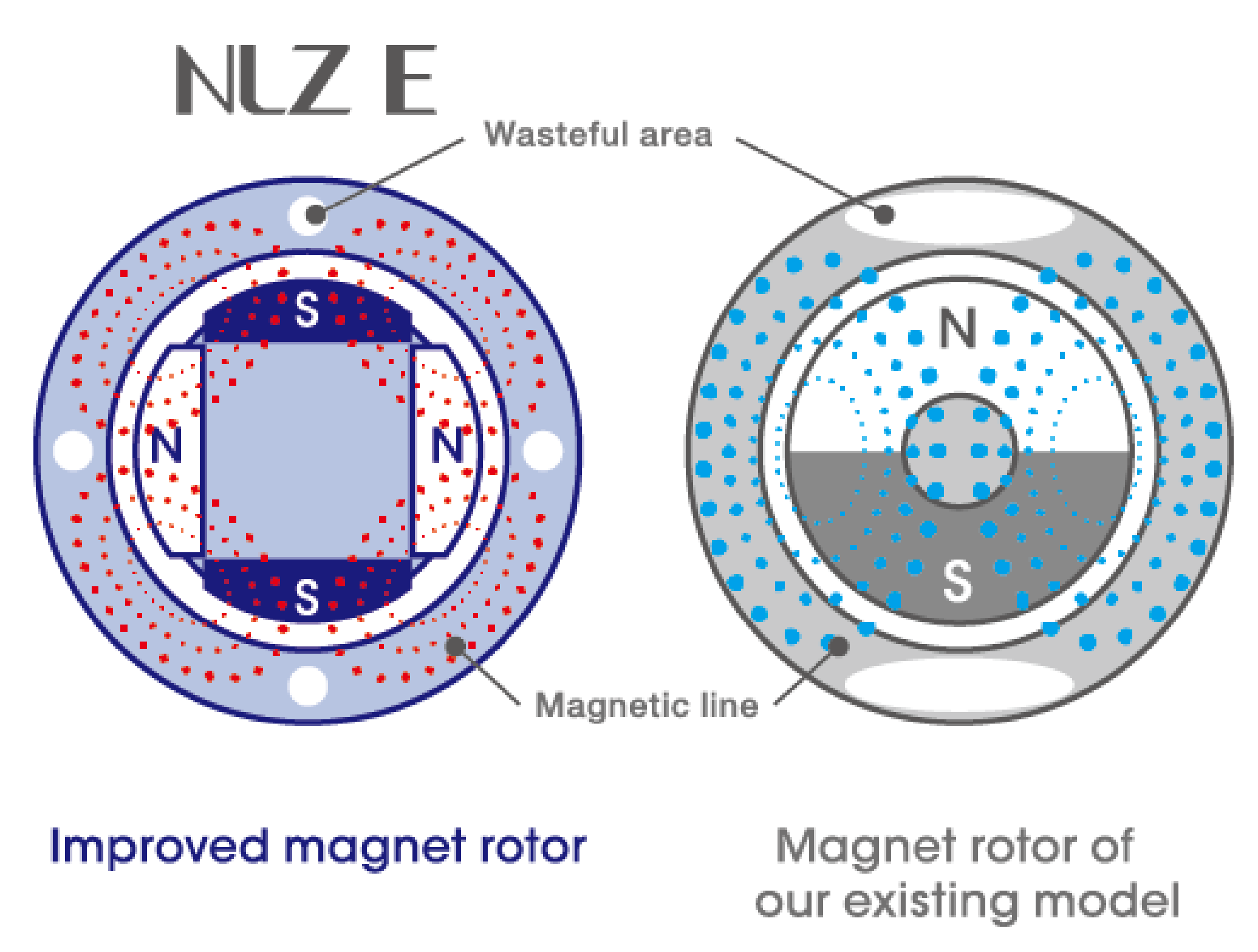

The conventional magnet rotor has been improved offering more powerful rotation while maximising the same amount of space.

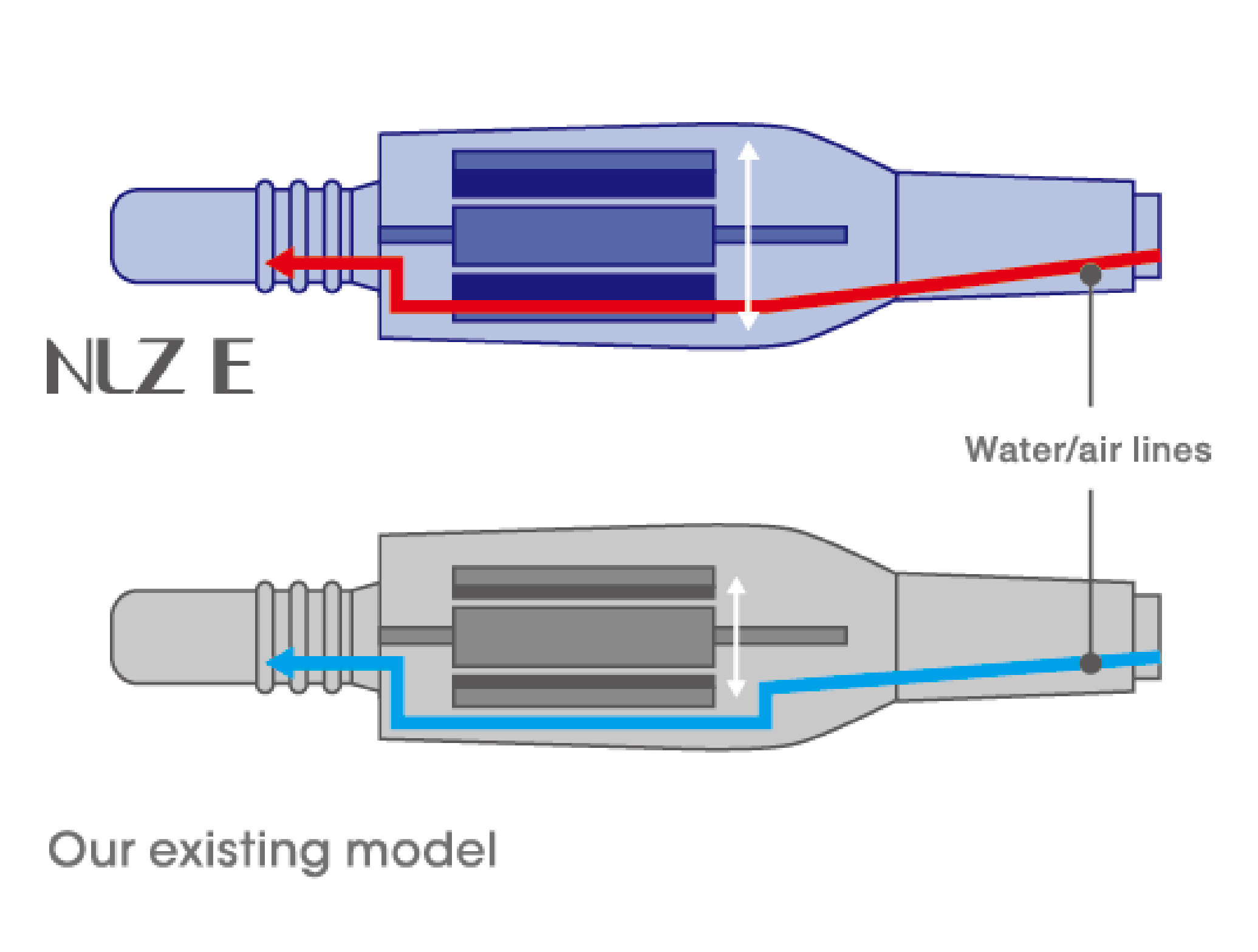

The water and air lines are now integrated within the motor, offering a lighter motor in addition to more efficient power/torque.

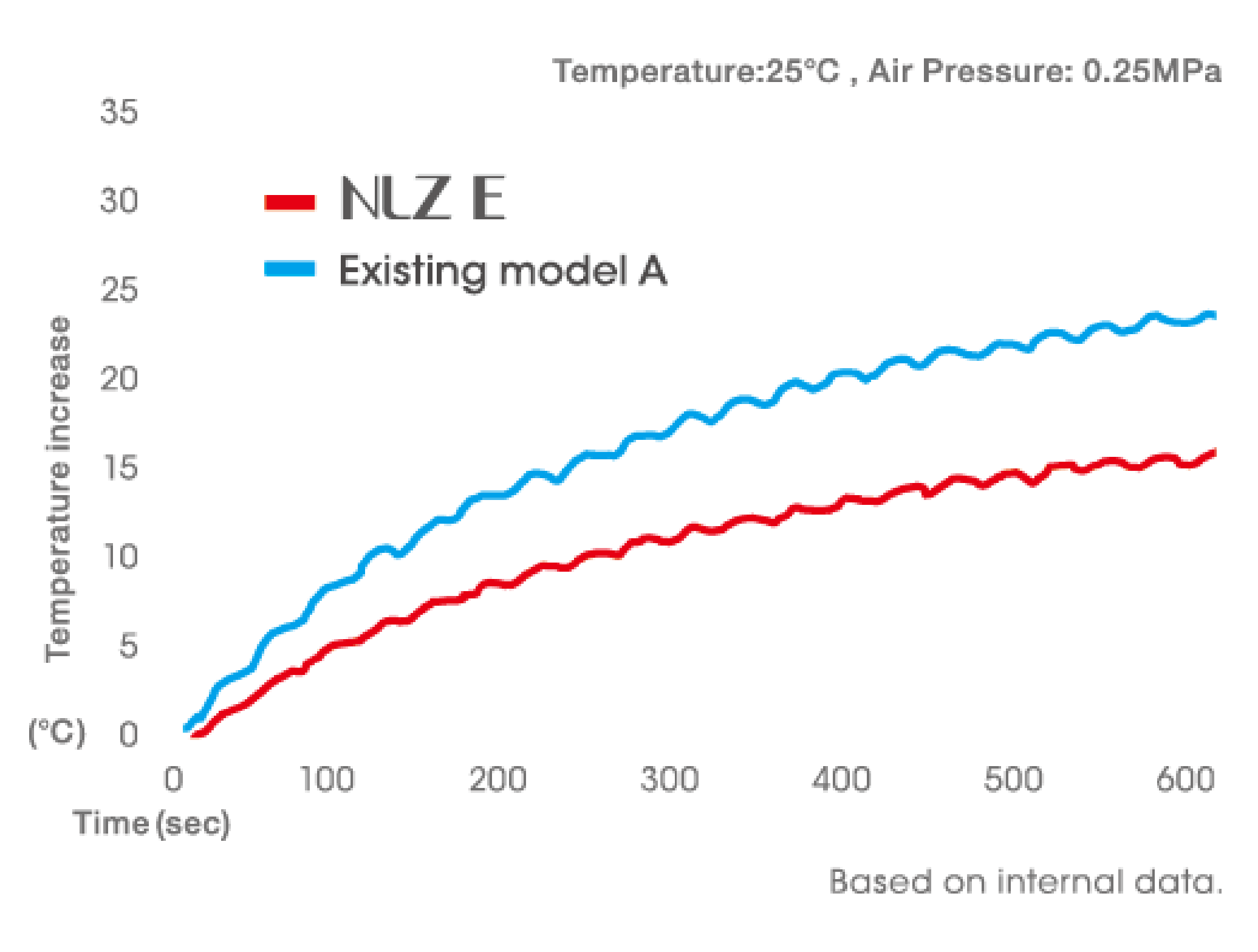

NLZ E offers less heat without compromising power, by employing a simple non-layered coil, shortening the pathway for heat generation.

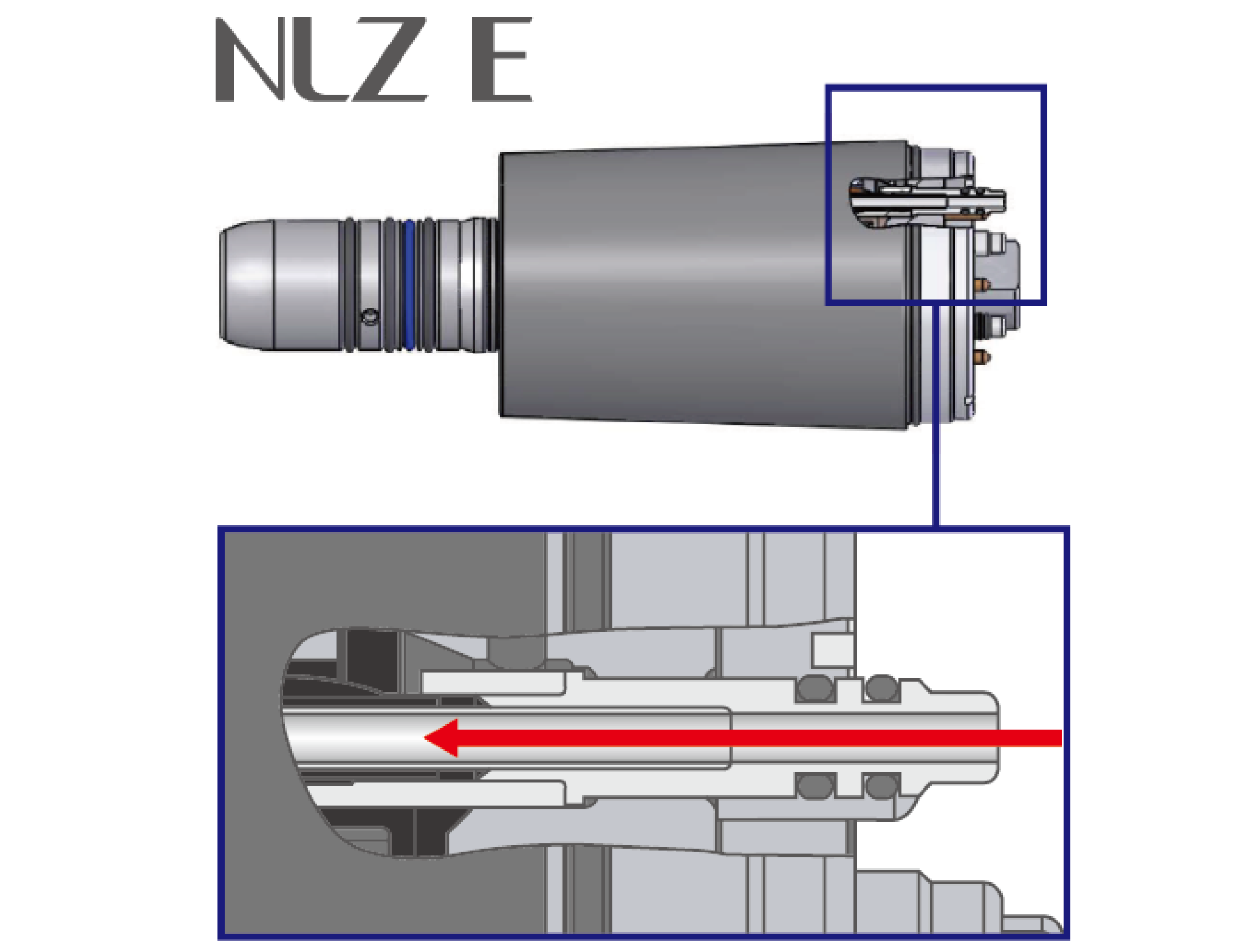

The NLZ E uses a simple straight water line design to reduce water blockages in the rear of the motor.

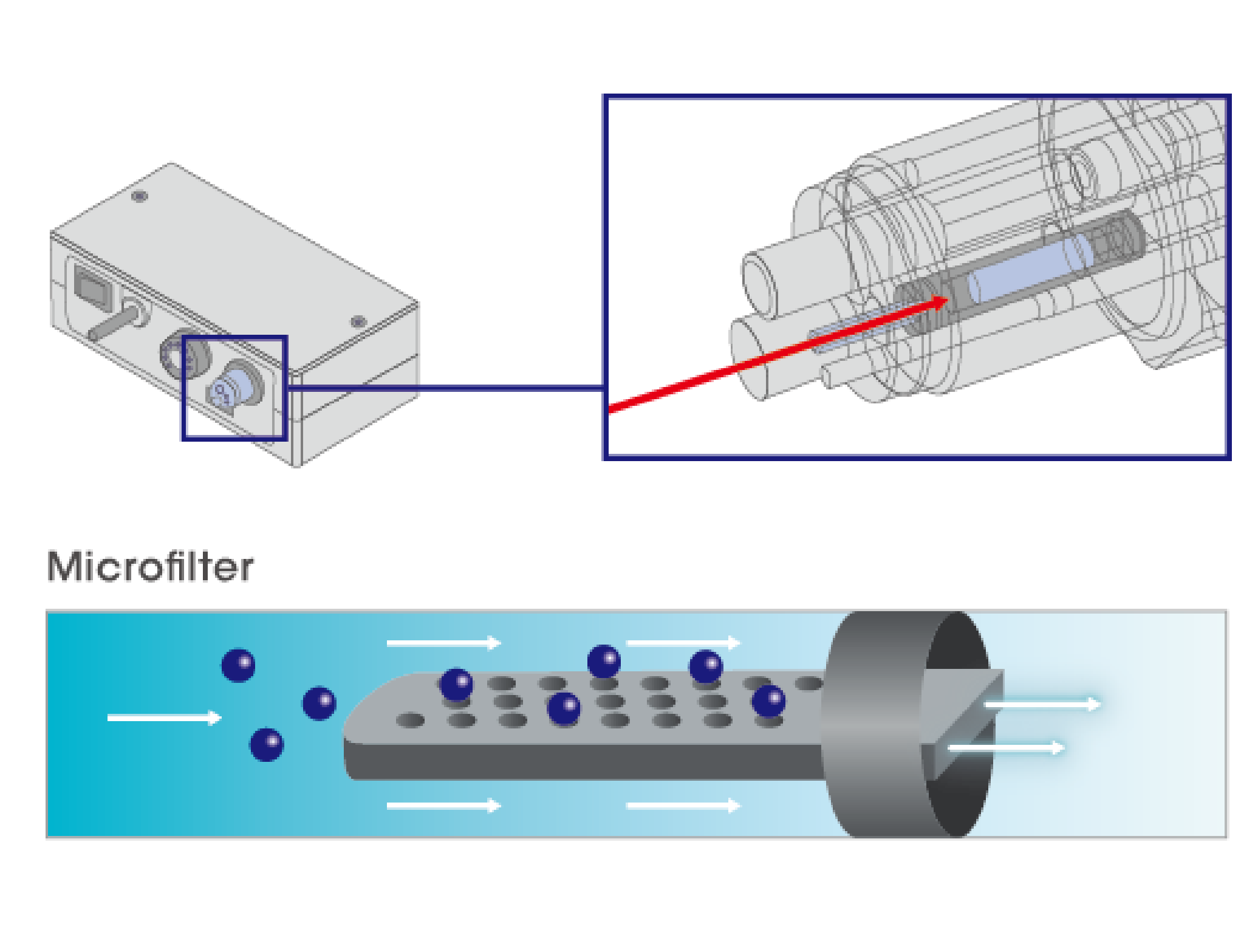

A mesh fitted water filter (0.3mm diameter) within the water line at the back of the motor catches debris and foreign particles to prevent blockages.
When performing the “Contra-Check Function” this also enables torque calibration. This function measures the no-load value and corrects the torque accordingly, resulting in enhanced safety within endodontic treatment.
*This function cannot completely compensate the difference of the motor and contra-angles.
*The "Reciprocating Endo Mode" can be operated only
with the NLZ Endo Contra Angle handpiece and WAVE ONE® file.
